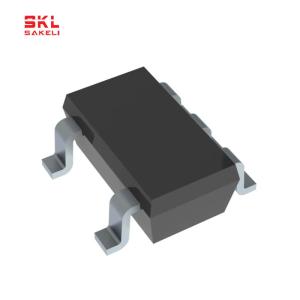

SN74AHC1G14DBVR IC Chip Inverter IC 1Channel Schmitt Trigger Single 2V To 5.5V

Shenzhen Sai Collie Technology Co., Ltd.
Contact Now

SN74AHC1G14DBVR IC Chip Inverter IC 1Channel Schmitt Trigger Single 2V To 5.5V

  • 1
  • 2

Brand Name : TI

Model Number : SN74AHC1G14DBVR

Place of Origin : original

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999999

Delivery Time : 1 - 3 days

Packaging Details : standard

Number of Circuits : 1

Operating Temperature : -40°C ~ 125°C

Volt3V ~ 18Vage - Supply : 2V ~ 5.5V

Mounting Type : Surface Mount

Supplier Device Package : SOT-23-5

Number of Inputs : 2

PN : SN74AHC1G14DBVR

Contact Now

SN74AHC1G14DBVR Integrated Circuit IC

Chip Inverter IC 1 Channel Schmitt Trigger Single 2V To 5.5V Package SOT-23-5

SN74AHC1G14DBVR

Logic Type
Number of Circuits
1
Number of Inputs
1
Features
Schmitt Trigger
Voltage - Supply
2V ~ 5.5V
Current - Quiescent (Max)
1 µA
Current - Output High, Low
8mA, 8mA
Input Logic Level - Low
0.9V ~ 1.65V
Input Logic Level - High
2.2V ~ 3.85V
Max Propagation Delay @ V, Max CL
10.6ns @ 5V, 50pF
Operating Temperature
-40°C ~ 125°C
Mounting Type
Supplier Device Package
Package / Case
SC-74A, SOT-753
Base Product Number

SN74AHC1G14DBVR Features

  • Operating Range 2 V to 5.5 V
  • Maximum tpd of 10 ns at 5 V
  • Low Power Consumption, 10-µA Max ICC
  • ±8-mA Output Drive at 5 V
  • Latch-Up Performance Exceeds 250 mA Per
  • JESD 17


SN74AHC1G14DBVR Description

The SN74AHC1G14DBVR device is a single inverter gate. The device performs the Boolean function Y = A.The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT−) signals.
