ADG822BRMZ-REEL7 IC Chip CMOS Dual SPST Switches Industrial Automation

Brand Name : ADI / MAXIM

Model Number : ADG822BRMZ-REEL7

Place of Origin : original

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999999

Delivery Time : 1-3 days

Packaging Details : standard

Multiplexer/Demultiplexer Circuit : 1:1

On-State Resistance (Max) : 600mOhm

Channel-to-Channel Matching (ΔRon) : 160mOhm

Voltage - Supply, Single (V+) : 1.8V ~ 5.5V

Voltage - Supply, Dual (V±) : -

Switch Time (Ton, Toff) (Max) : 45ns, 16ns

PN : ADG822BRMZ-REEL7

Contact Now

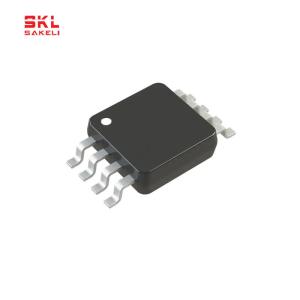

ADG822BRMZ-REEL7 Electronic Components IC Chip CMOS 1.8 V to 5.5 V Dual SPST Switches Package 8-MSOP

Product Status
Active
Switch Circuit
SPST - NC
Multiplexer/Demultiplexer Circuit
1:1
Number of Circuits
2
On-State Resistance (Max)
600mOhm
Channel-to-Channel Matching (ΔRon)
160mOhm
Voltage - Supply, Single (V+)
1.8V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
45ns, 16ns
-3db Bandwidth
24MHz
Charge Injection
15pC
Channel Capacitance (CS(off), CD(off))
85pF, 98pF
Current - Leakage (IS(off)) (Max)
250pA
Crosstalk
-82dB @ 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package
8-MSOP

FEATURES
0.8 Ω maximum on resistance @ 125°C
0.3 Ω maximum on resistance flatness @ 125°C
1.8 V to 5.5 V single supply
200 mA current carrying capability
Automotive temperature range: −40°C to +125°C
Rail-to-rail operation
8-lead MSOP
33 ns switching times
Typical power consumption: <0.01 μW
TTL-/CMOS-compatible inputs
Pin-compatible with the ADG721/ADG722/ADG723
APPLICATIONS
Power routing
Battery-powered systems
Communication systems
Data acquisition systems
Audio and video signal routing
Cellular phones
Modems
PCMCIA cards
Hard drives
Relay replacement
